I/O Back Panel:

These I/O Panel Specs are specific to the Giga-Byte - GA-7VRXP (RAID) Motherboard. Other M/B Designs may differ slightly. Check your specific M/B for reference. Documented from From Left To Right & Top To Bottom.

  1. PS/2 Mouse & PS/2 Keyboard Connector
  2. LAN & USB Connectors
  3. Parallel Port, Serial Ports (COM 1 / COM 2)
  4. Game / MIDI Port
  5. Audio Connectors -
    1. Line Out - Speakers (Analogue) or SPDIF (Digital)
    2. Line In - (Middle Jack - Auxiliary Input), CD-ROM , walkman, Etc.
    3. MIC In - Microphone Jack
Multi-channel Analogue Sound Speaker Connections:
  1. Line Out - Speakers (Front, Left / Right)
  2. Line In - Middle Jack - Rear, Left / Right)
  3. MIC In - Front Center & Low Frequency Enhancement (LFE) loudspeaker.

The optional S/P DIF Connecter, if provided, allows for a Dolby Digital AC-3 Connection.

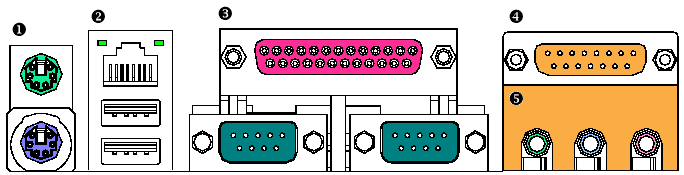

I/O Panel Drawing & Photo:
